Dynamic · Resolving · Musical
Engineered to impress.
Musicality and resolution can co-exist. The Apex is built around that formula.
IEM
Our one for all formula. The Apex in universal version features our comfort-optimised shell and in-ear pressure balancing mechanisms. Optimal seal is achieved through the included Divinus Velvet eartips, developed alongside the tuning. For listeners who want the Apex without the impression process. The Apex tuning, in the form that adapts to any ear. No matter the size.

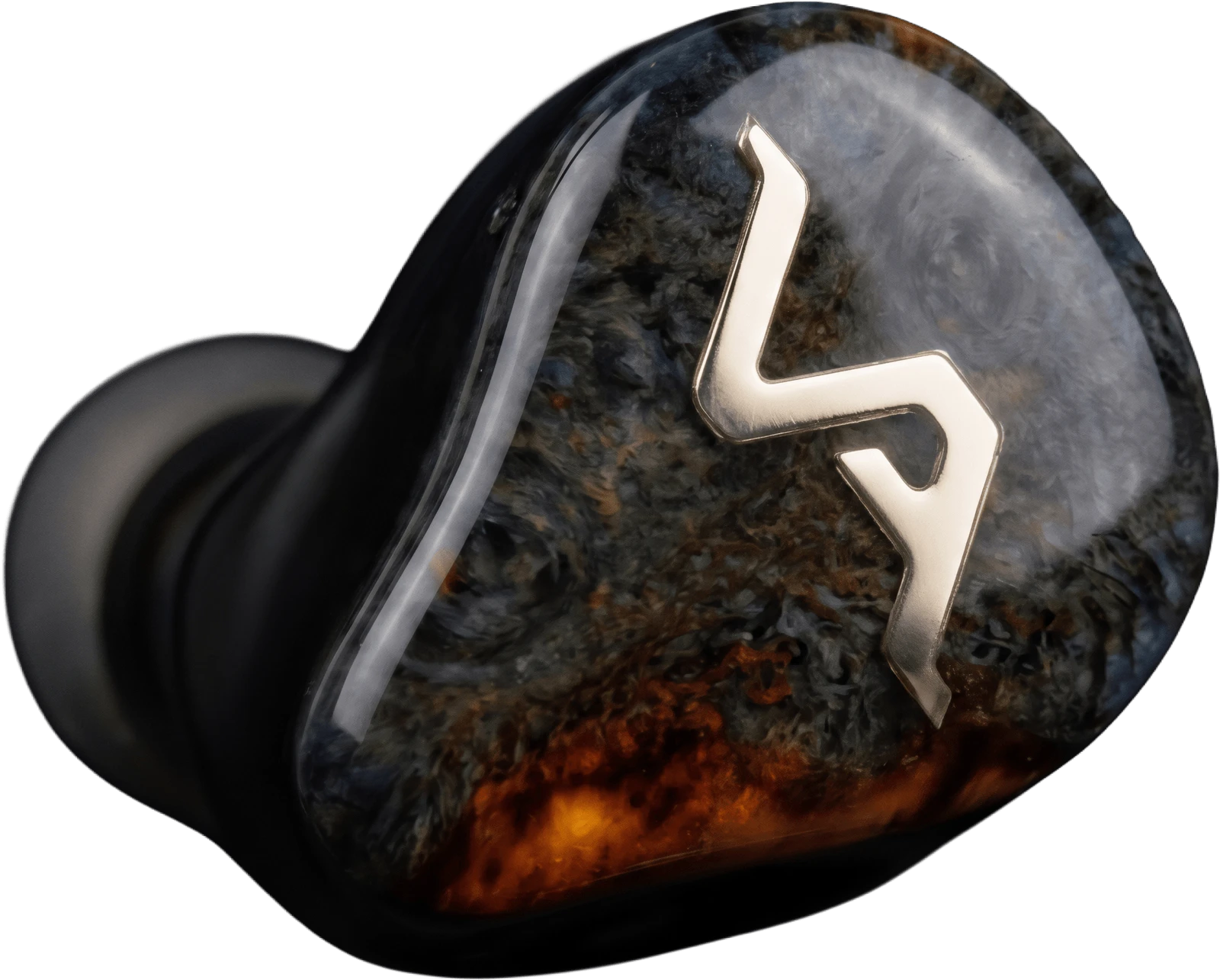

CIEM
Each shell is handcrafted from physical impressions of your ear canal for optimal isolation and acoustic consistency. Custom Apex features an integrated acoustic wax guard system at the nozzle exit, protecting the tubeless architecture without obstructing the acoustic path. Built from medical-grade acrylic, our expertise gets you the best seal possible with up to 32 dB of passive isolation.
Standard
Black on black aesthetic with contrasting chrome VA logo on the faceplate.
Bespoke+$150
We will materialize your dream design. If your preferred aesthetic sits outside our standard library, we will engineer the shell to your exact desires. Whether it requires rare minerals, unique stones, or intricate personal artwork, we will handle the execution. The sky is the limit.
The industry treats driver counts as a substitute for acoustic architecture. We reject that approach. Unmanaged internal volume in large handcrafted shells creates parasitic resonances and group delay. The conventional fix is to choke the airflow with narrow silicone tubing. We engineered the exact opposite. The Apex internal cavity is mathematically calibrated to the suspension compliance of our co-axial array. We harness the physical volume to amplify acoustic scale, maintaining absolute transient control without artificial restriction.
The Apex utilises a hybrid material approach for its 2-way co-axial array. The 12mm low-frequency driver features a Crystal-Graphene diaphragm, while the 7mm high-frequency tweeter uses a pure Beryllium dome. We selected these materials for their exceptional rigidity and low mass. By mounting the 7mm Beryllium tweeter at the acoustic centre of the 12mm Crystal-Graphene bass driver, we achieve a true point-source radiation pattern. High and mid/low frequencies reach the eardrum as a single, unified wavefront.
Tubeless Venturi Canal
Pushing massive low-frequency energy through narrow plastic tubing creates high acoustic friction. It acts as an artificial choke point, softening transient impacts and introducing standing waves. The Apex eliminates this bottleneck entirely. Built on principles of fluid dynamics, our tubeless Venturi canal manages internal air velocity and pressure gradients to drop acoustic friction to near zero. The driver breathes naturally within the cabinet. It delivers raw, unrestricted bass output with immediate, hyper-fast decay.
Acoustic Tangent Waveguide
Rather than letting sound waves spray chaotically and reflect off internal walls, we engineered a mathematically calculated exit path. The waveguide directs the acoustic wavefront along a smooth, tangential curve straight to your ear canal. It prevents the internal diffraction and reflections that occur in standard tubular designs.
Helmholtz Resonator
Standard acoustic dampers fix treble peaks but choke the airflow, killing air and detail. We handle the acoustic energy inside the enclosure differently. Our integrated chamber is tuned to a precise air volume to act as a selective filter. It neutralises unwanted resonances through destructive interference.
Drop your own measurement onto the chart to compare it with ours.Compare your own measurement with ours.
ARTA, REW, squig.link and plain CSV exports. Read in your browser — the file is never uploaded.
Both curves are levelled by their 200 Hz – 2 kHz average. Measurement rigs diverge above roughly 4 kHz, so read the treble as indicative.
We tested countless eartips and nozzle geometries during development. Sound is the only metric that dictates our choices. The Divinus Velvet tips delivered the exact acoustic synergy the Apex required. The exceptional comfort was simply the final requirement met.
The Apex features a dedicated in-ear pressure release system. This port functions as a pneumatic relief valve that equalises the air pressure between the ear canal and the external environment. This eliminates the "ear-suck" sensation and prevents pneumatic pressure from dampening the eardrum, allowing for extended listening sessions without acoustic fatigue.
The ventilation system is engineered to provide atmospheric pressure balance for the co-axial dynamic drivers. By equalising the pressure on both sides of the Crystal-Graphene diaphragm, we eliminate "driver-flex" (the clicking sound upon insertion). This free-moving environment allows the bass driver to reach its full excursion potential without mechanical strain.
A standard passive crossover network interacts with source impedance, often shifting the intended signature. We engineered a high-precision 2-way crossover integrated with linear impedance technology to eliminate this variable. Our Impedance Matching Optimisation ensures the Apex maintains a flat, consistent frequency response across a wide range of source output impedances. Whether you are using a portable DAP, a high-power desktop amplifier, or a streaming dongle, the sound signature and crossover behaviour remain completely identical.
Human hearing is non-linear. Most systems require high volumes to achieve tonal balance. Below that threshold, bass recedes and the signature thins. The Apex maintains its intended bass body and proportionality at any level. This is achieved through acoustic engineering rather than mid-bass compensation. The pressure release port and impedance optimisation prevent the signature from shifting. As volume increases, the bass scales linearly without compression or saturation. It performs consistently from the first click to the last.
Signal integrity is preserved within the shell using UP-OCC Copper Litz wiring. The Ultra-Pure Ohno Continuous Casting process, combined with an insulated multi-strand Litz structure, maximises conductivity and minimises high-frequency signal loss. An integrated anti-oxidation shield ensures long-term electrical stability.
Every electrical connection in the Apex is fused using Mundorf M-Solder. This specific alloy is utilised for its ultra-low noise floor and superior joint integrity. By maintaining consistent conductivity across every contact point, we prevent signal degradation and ensure long-term reliability of the internal circuitry.
Driver Configuration
Custom Co-Axial Array
Fit
Universal & Custom
Connector
2-Pin
Impedance
10 ohm
Sensitivity
108 dB
Frequency Response
5 Hz – 22 kHz
Warranty
2 Years
Support
Lifetime
Every pair is registered to its owner. Defects and service covered for two years; questions, tuning advice, and care for as long as you own them.
